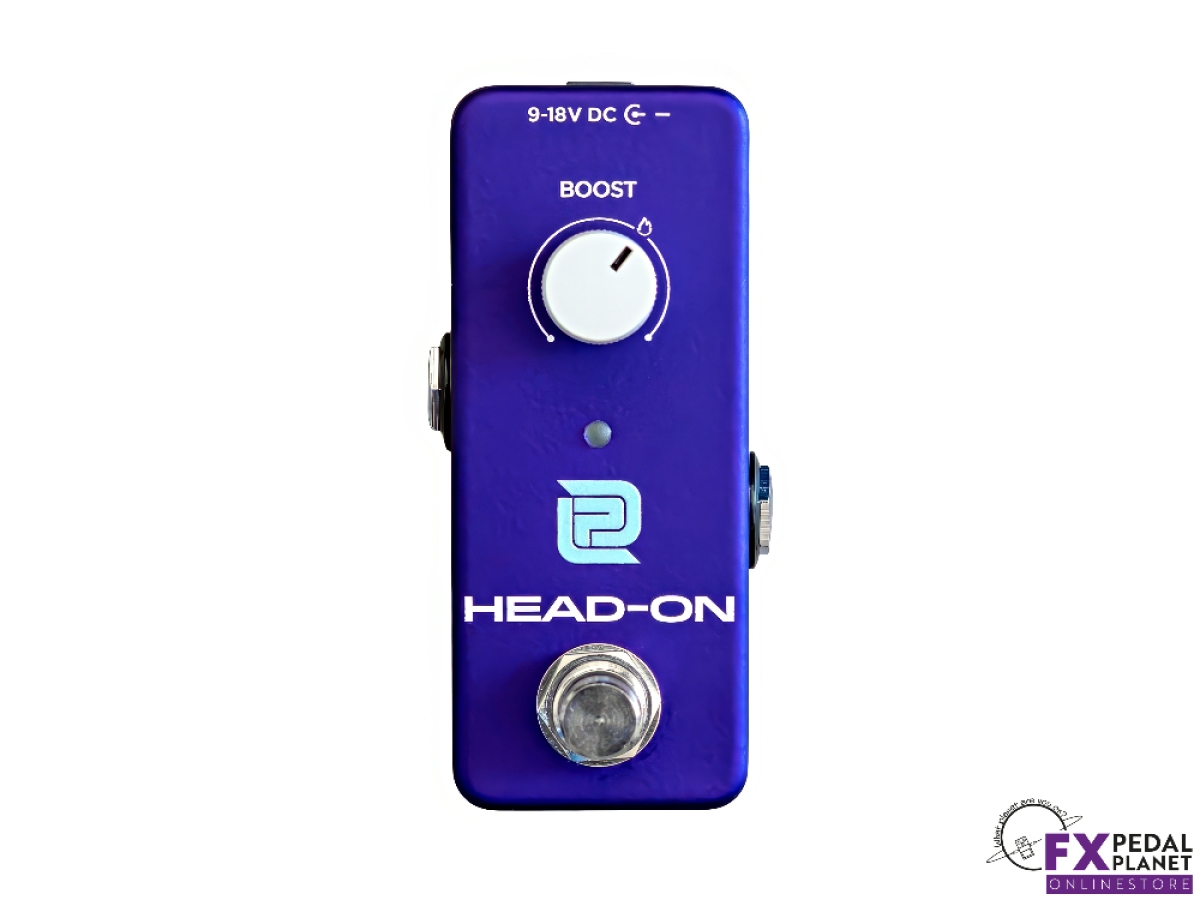

LPD Pedals Head On

Head On

£139.00

Highlights

• Compact signal conditioner and clean boost with additional gain and clipping range
• Flat EQ clean boost to mid settings, then transitions into clipping and compression
• Responsive dynamics that follow picking strength and guitar volume changes naturally
• Single control keeps shaping intuitive while covering wide gain and boost range
• Derived from Sixty8 Deluxe boost circuit for proven tonal performance
• Robust metal enclosure built for regular use and pedalboard reliability
• Clear, minimal graphics for quick adjustment in live and studio settings
• Bright LED indicates effect status clearly on stage or in low light
• Buffered bypass with latching or momentary switching flexibility
• Fully analogue signal path preserves natural instrument tone
• Top-mounted jacks for efficient pedalboard layout and cable management
• Covered by manufacturer warranty for confidence and long-term reliability

Description

The LPD Pedals Head On is a compact signal conditioner and clean boost designed to sit at the front of a pedalboard or push an amplifier into a more responsive and expressive range. It works equally well for guitar and bass, offering a wide gain range that moves from subtle level enhancement through to driven textures, making it suitable for everything from clean headroom shaping to more aggressive styles where added saturation is required.

At lower settings, the LPD Pedals Head On delivers a full-range, flat EQ boost that preserves the core character of the instrument and amplifier while adding clarity, presence, and volume. As the control is increased beyond roughly midday, the circuit begins to introduce its own clipping and compression, moving into a more saturated and slightly fuzz-like response. This progression makes it particularly effective for pushing already-driven amps, tightening low end, or adding harmonic density without losing note definition.

The feel is immediate and responsive, with a natural interaction between picking dynamics and the guitar’s volume control. It remains intuitive to use, allowing players to dial in subtle enhancements or more assertive tones without needing multiple controls, making it a practical tool both on stage and in the studio.

The single control offers a wide and usable sweep, covering clean boost, signal conditioning, and overdriven textures in one motion. This simplicity makes it easy to integrate into any rig while still offering a broad tonal palette.

Based on the boost circuit from the Sixty8 Deluxe, the design focuses on maintaining signal integrity while offering additional gain and tonal shaping when required. It functions as a buffer, booster, and signal conditioner, helping to maintain clarity across longer cable runs and complex pedalboards.

The enclosure is compact and built from durable metal, making it well suited to regular gigging and transport. Its size allows it to fit easily onto crowded pedalboards without sacrificing usability.

Graphics are kept clear and minimal, ensuring that adjustments can be made quickly and accurately in low-light environments.

A bright LED indicator provides clear visual confirmation of the pedal’s status, whether in rehearsal, studio, or live settings.

The LPD Pedals Head On features buffered bypass with two selectable modes: standard latching operation or momentary switching, allowing players to use it either as a traditional always-on boost or as a temporary gain lift for specific passages.

Side-mounted input, output, and power connections make pedalboard integration straightforward, helping to keep cable runs tidy and efficient.

With its combination of clean boost, signal conditioning, and progressive gain character, the LPD Pedals Head On stands out as a versatile and practical addition to any setup, offering reliable performance and a wide range of usable tones in a compact format.

Controls

• LEVEL: Adjusts overall boost from clean enhancement to clipping and compressed saturation
• FOOTSWITCH: Selects latching or momentary bypass operation depending on press behaviour

Components and Technical Specification

• Analogue signal conditioner and clean boost circuit for natural tone and dynamic response
• Flat EQ boost retains instrument and amplifier character across frequency range
• Up to 24dB clean boost for driving amps or lifting signal in mix
• Progressive clipping and compression at higher settings for added saturation
• Functions as buffer to maintain clarity across longer cable runs
• 1M ohm input impedance preserves pickup response and high-end detail
• 1k ohm output impedance ensures strong signal driving capability
• Selectable buffered bypass with latching or momentary switching modes
• Operates on 9–18V for increased headroom and dynamic range
• Low current design suitable for most isolated pedalboard power supplies
• Top-mounted jacks optimise pedalboard space and cable routing
• Compact enclosure suitable for tight pedalboard layouts
• Powered by standard 9V centre negative supply (not included)
• Battery operation not supported
• Current draw measured with Truetone 1Spot mA Meter:
• Bypass: Approximately 7 mA
• Engaged (maximum): Approximately 8 mA

Current draw may vary slightly depending on control settings, circuit behaviour, and active features such as gain stages, modulation, filtering, or reverb tails. For best performance, use a high quality isolated power supply that matches the pedal’s current requirements. Always refer to the manufacturer’s recommendations, as incorrect powering may cause damage.

Enclosure Dimensions

• Depth: 94 mm / 3.7 in
• Width: 39 mm / 1.5 in
• Height: 32 mm / 1.2 in

Weight

• 145 g
• 0.32 lbs
